System requirements



Before you install Advantage BWA, you have to make sure that your system complies with the following requirements:







Components	Requirements
Server-side requirements	Microsoft® .NET Framework 4.8 on supported Windows versions. NOTE: To deploy your Advantage project to Microsoft Azure, you must first create and develop your project locally. Advantage supports both 32 bit and 64 bit Windows operation systems on x86 processor architecture. Internet Information Services 10+ NOTE: To deploy your Advantage projects to IIS, you must configure IIS to use Integrated application pool mode.
Supported browsers for administration and content editing	The latest two officially supported versions of the following browsers: Firefox Chrome Edge Webkit (Safari) JavaScript must be enabled on all browsers.
For development	All Microsoft® Visual Studio editions for versions 2017, 2019, and 2022. You have to install the following: ASP.NET and web development workload. .NET Framework 4.8 SDK component. .NET Framework 4.8 targeting pack component.



Environment:

• .NET v4.8 or higher (IIS v10 or higher) for Advantage application
• Microsoft SQL (Azure, 2019 or higher) for Advantage database




Serverless: (recommended)









Advantage BWA Community:

• App Service Standard Plan S1 or higher for Advantage application

• Azure SQL Standard Tier (S0 10DTUs/250GB or higher) for Advantage database



Advantage BWA Enterprise:

• App Service Premium Plan P1V3 or higher) for Advantage application
•  Azure SQL Premium Tier (P1 125DTUs/500GB-1TB or higher) for Advantage database




High availability enterprise deployment using App Service Environment



Server-based (VM):



Highly Available Network Virtual Appliances (NVAs)

The following architectures describe the resources and configuration necessary for highly available NVAs:

Solution	Benefits	Considerations
Azure Load Balancer	Supports active/active, active/standby and scale-out NVAs. Very good convergence time	The NVA needs to provide a port for the health probes, especially for active/standby deployments. Flows to/from Internet require SNAT for symmetry
Azure Route Server	The NVA needs to support BGP. Supports active/active, active/standby and scale-out NVAs.	Traffic symmetry requires SNAT
Gateway Load Balancer	Traffic symmetry guaranteed without SNAT. NVAs can be shared across tenants. Very good convergence time. Supports active/active, active/standby and scale-out NVAs.	Supports flows to/from the Internet, no East-West flows
Changing PIP/UDR	No special feature is required by the NVA. Guarantees symmetric traffic	Only for active/passive designs. High convergence time of 1-2 minutes





Build Solutions For High Availability Using Availability Zones:





Advantage BWA Community:





This will install the following:

• Advantage Project – Main project container
• Advantage BusinessObject – Object used to create and store data.
• Advantage SiteSettings BusinessObject – Object used to manager custom “site wide” data.
• Advantage Module – Display module used on the frontend.
• Advantage Rewrite Module – Display module used on the front end and can be easily bound to a BusinessObject.
• Advantage Tool – Administrative user control used to manage the data of a BusinessObject.
• Advantage Site Settings Tool – Administrative user control used to manage the data of a Site Settings BusinessObject



First Time Setup

• Install -> Stop all instances of Visual studio and double-click to install the .vsix.
• Create Project -> Open Visual Studio -> Create a new project -> Select "BuildWithAdvantage Project" type.
• Configure Database -> Open the web.config and set the connection string for your database server. Make sure the user specified has privileges to create a new database.
• Server -> Name or IP address of database server
• Database -> Name of the database that will be created for this project (will automatically be created on initialization.
• User -> SQL Server user ID
• Password -> SQL Server password

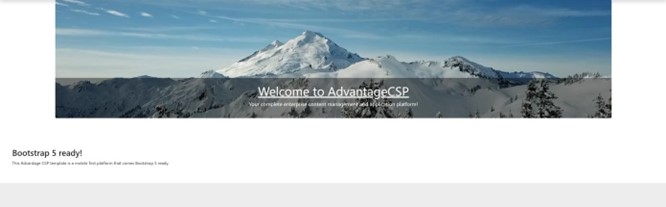

• On startup you will land on the default "Welcome to Advantage" page. Navigate to the
• Advantage Action Item Control – Administrative control to allow custom functionality.Navigate to the
  /BuildWithAdvantage/initializeBWA to begin setup of the project.










Our Shared Hosting (we manage):

• Fully managed solution, one Point of Contact, local development, support and infrastructure.
• Features state of art web application firewall (WAF) with complimentary SSL certificate and custom rules
• Hosting price is embedded with the licensing. Please refer to Advantage BWA Pricing | Advantage BWA.



Our Dedicated Hosting (In addition to the above):

• Uptime with 3 9s SLA and active 5m monitoring and notification.
•  Features service isolation (process, memory, bandwidth, and storage)

• Provides further custom setup for load balancing, high availability, redundancy,
• Uptime with 4 9s SLA and active 1m monitoring and escalation.

Starter Edition is available on the Shared Hosting or can be run under the Community Edition for development and testing purposes. Advantage dedicated hosting for Enterprise Editions will be based on the Azure commercial rates and based on the recommended instance configuration mentioned above. Additional cost (a la cart) for custom setup of other services for availability, scalability, security, and resiliency based on the requirements and solutions that are not included in the shared hosting.
